dataZen P-SCANNER

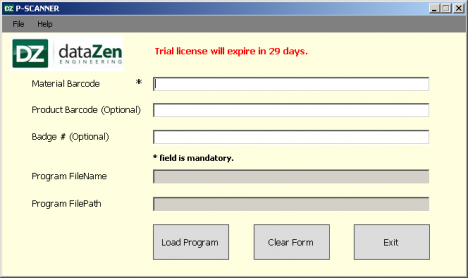

dataZen Engineering’s P-SCANNER provides an Okuma P200 or P300 control user with the ability to scan a barcode and have the associated part program automatically retrieved from the control or from a remote network location – ready to run.

Description

P-SCANNER delivers measurable operational efficiency:

Reduces chance of operator error using scanning technology rather than manual, keyboard entry
Saves time to program-select .MIN files into the control, ready for Cycle Start
Calling an associated setup instruction file on-the-fly

Details

Updated: 04/12/2016
Available Versions: 1.2.2.0
Size: 120,637 KB

Compatibility:

Operating Systems: Win XP 32-bit SP3, Win 7 32-bit SP1 (Other operating systems untested but may be compatible.)
API Versions: 1.15.0 or later
Dot NET Versions: 4.0 or later
OSP Control Types: (R type supported): P100 Type II, P200, P300
Machine Types: Any, except for PC
Required License Features: None
Other Required Item: Barcode scanner

About The Developer

Company: dataZen Engineering
Certified Developer?
Phone: 919.526.1018
Email: dataZen@dataZenEngineering.com

dataZen Engineering Inc., is an innovative and creative, high-quality provider of custom engineered software solutions for the machine tool industry since 2008. Our focus is on measurable operational efficiency with resulting cost reductions averaging over 20% per shop after the first year of installation.

Our MIRA™ line of products is built on a scalable framework that can automatically collect and monitor machine operation status, alarms, efficiency and availability. Whether for only one machine without a network or for multiple machines connected to a proprietary network, MIRA delivers real value in an easy-to-use, affordable package.
